Viewer UI Setup¶

The Edda Viewer UI provides workflow visualization and monitoring capabilities.

Installation¶

Install Edda with Viewer UI support:

# Install Edda with viewer extras
pip install edda-framework[viewer]

# Or using uv
uv add edda-framework --extra viewer

# With all extras (PostgreSQL, MySQL, Viewer)
pip install edda-framework[postgresql,mysql,viewer]

# Or using uv
uv add edda-framework --extra postgresql --extra mysql --extra viewer

Quick Start¶

The easiest way to start the Viewer is using the command-line tool:

# Start viewer with default settings (demo.db, port 8080)
edda-viewer

# With custom database and port
edda-viewer --db my_workflows.db --port 9000

# Import workflow modules for visualization
edda-viewer --import-module demo_app

# Multiple modules
edda-viewer -m demo_app -m my_workflows

Then open http://localhost:8080 in your browser.

The Viewer UI shows all workflow instances with status badges and action buttons

Pydantic Form Generation:

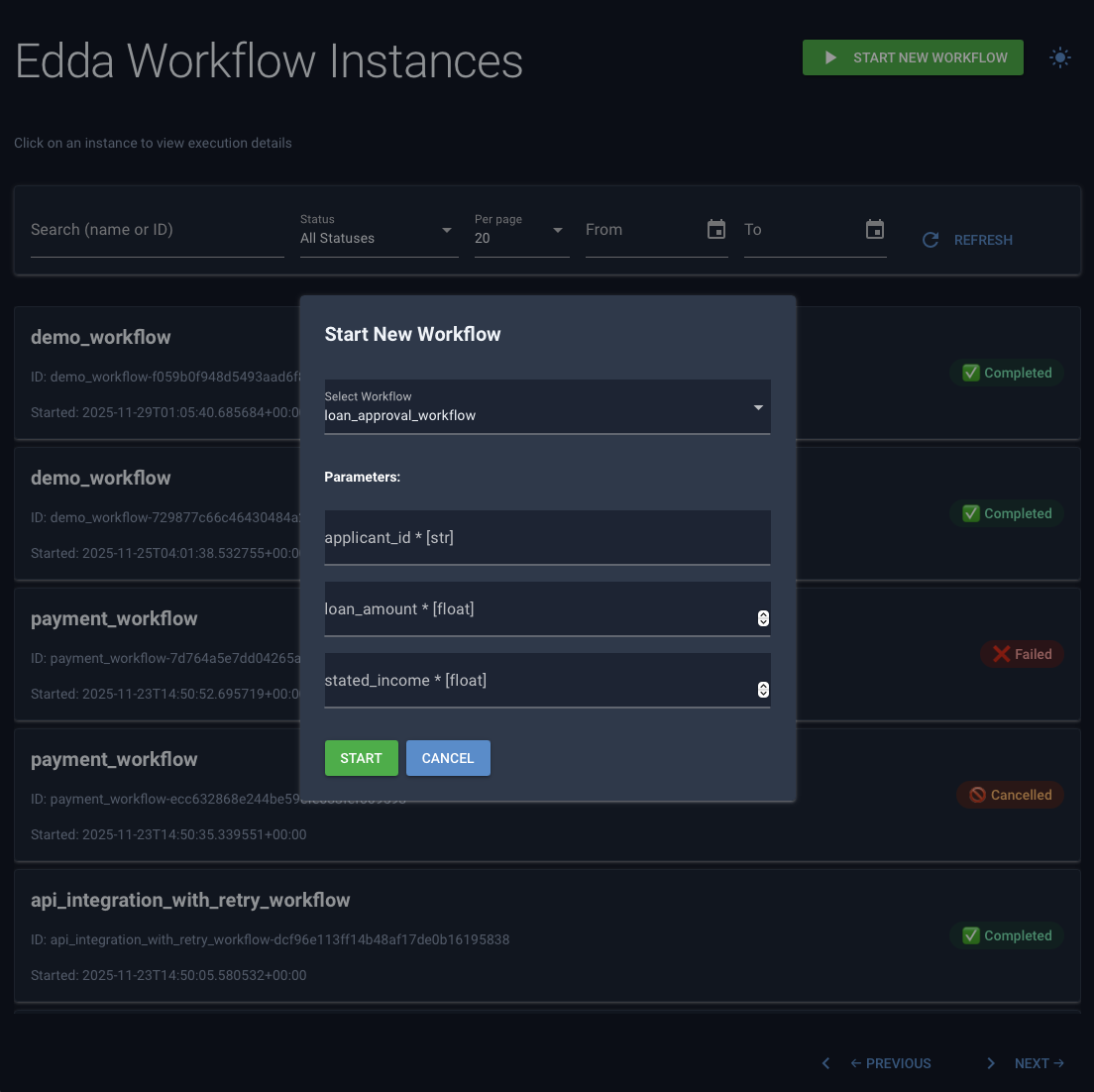

Auto-generated form fields based on Pydantic model type hints (str, float, int)

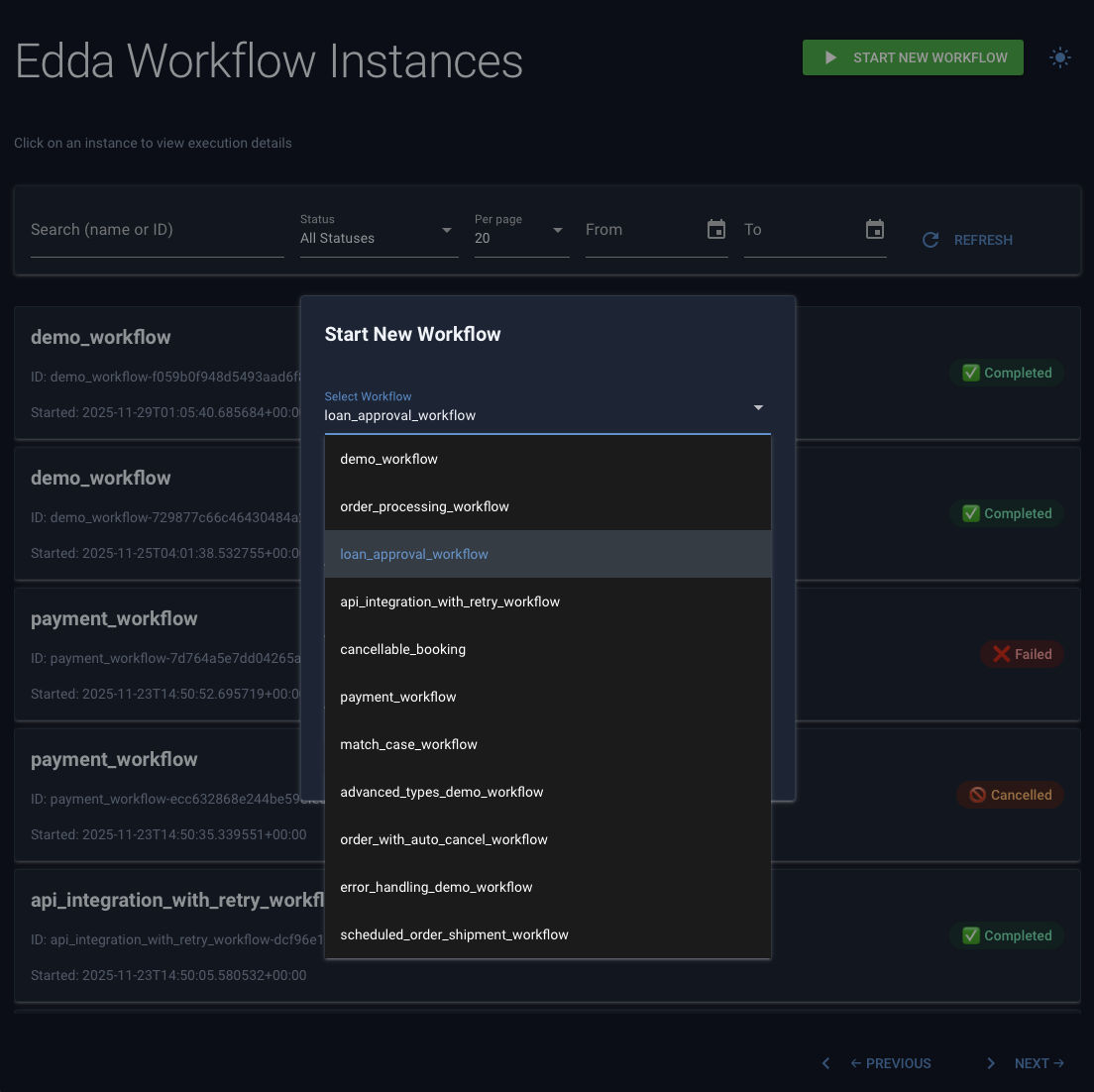

Dropdown showing all registered workflows with event_handler=True

Three Ways to Run the Viewer¶

Method 1: Command Line (Recommended)¶

The simplest way to start the Viewer:

# Basic usage
edda-viewer

# Full options
edda-viewer --db demo.db --port 8080 --import-module demo_app

Command Line Options:

Environment Variables:

• EDDA_DB_URL: Database URL (overrides --db option)
• SQLite: sqlite:///demo.db
• PostgreSQL: postgresql+asyncpg://user:pass@localhost/db
• MySQL: mysql+aiomysql://user:pass@localhost/db

Examples:

# Development with demo workflows
edda-viewer -m demo_app

# Production with PostgreSQL
export EDDA_DB_URL="postgresql+asyncpg://user:pass@localhost/workflows"
edda-viewer --port 8080

# Multiple workflow modules
edda-viewer -m workflow_module1 -m workflow_module2

Method 2: Python Script¶

Create a custom viewer script (my_viewer.py):

from edda import EddaApp
from edda.viewer_ui import start_viewer

# Create Edda app (for database access only)
edda_app = EddaApp(
    service_name="viewer",
    db_url="sqlite:///demo.db",
)

# Start the viewer
start_viewer(edda_app, port=8080)

Run the script:

uv run python my_viewer.py

start_viewer() Parameters:

Method 3: Direct Script Execution¶

Run the included viewer_app.py script directly:

# Basic
uv run python viewer_app.py

# With options
uv run python viewer_app.py --db my.db --port 9000 -m demo_app

# Development mode with auto-reload (using NiceGUI directly)
nicegui viewer_app.py --reload

Running the Viewer with Your Application¶

Step 1: Start Your Edda Application¶

First, start your Edda application (e.g., demo_app.py):

# Run demo application
uv run tsuno demo_app:application --bind 127.0.0.1:8001

# Or run with uvicorn
uv run uvicorn demo_app:application --port 8001

Step 2: Start the Viewer UI¶

In a separate terminal, start the Viewer:

# Option 1: Command line (easiest)
edda-viewer -m demo_app

# Option 2: Python script
uv run python viewer_app.py -m demo_app

The Viewer UI will be available at http://localhost:8080

Production Configuration¶

Using Environment Variables¶

For production deployments, use environment variables:

# .env file
EDDA_DB_URL=postgresql+asyncpg://user:pass@db.example.com/workflows

Start the viewer:

edda-viewer --port 8080

Custom Python Script¶

Create a production viewer script:

import os
from edda import EddaApp
from edda.viewer_ui import start_viewer

# Create EddaApp with environment-based configuration
edda_app = EddaApp(
    service_name="viewer",
    db_url=os.getenv("EDDA_DB_URL", "sqlite:///demo.db"),
)

# Start viewer
start_viewer(
    edda_app,
    port=int(os.getenv("VIEWER_PORT", "8080"))
)

Features¶

The Viewer UI provides:

• ✅ Workflow List: View all workflow instances with filtering
• ✅ Workflow Details: See execution history and current status
• ✅ Hybrid Diagram: Visual workflow graph (AST + execution history)
• ✅ Start Workflows: Launch workflows from the UI with auto-generated forms
• ✅ Cancel Workflows: Cancel running or waiting workflows
• ✅ Filter & Search: Find specific workflows by status, name, or ID
• ✅ Real-time Updates: Auto-refresh workflow status

Troubleshooting¶

Viewer Dependencies Not Installed¶

Error: Error: Viewer dependencies are not installed

Solution:

# Install viewer dependencies with pip
pip install edda-framework[viewer]

# Or with uv
uv sync --extra viewer
# Or
uv add edda-framework --extra viewer

Database Connection Error¶

Error: "Database not found" or "Permission denied"

Solution:

1. Verify database path/URL is correct
2. Check file permissions for SQLite database file
3. For PostgreSQL/MySQL, verify credentials and network access
4. Ensure the database was created by your Edda application

Port Already in Use¶

Error: "Address already in use" on port 8080

Solution:

# Use a different port
edda-viewer --port 8081

Or kill the existing process:

# Find process using port 8080
lsof -ti:8080 | xargs kill -9

Module Import Errors¶

Error: Warning: Could not import module 'my_module'

Solution:

1. Ensure the module is in your Python path:

   export PYTHONPATH="${PYTHONPATH}:$(pwd)"
   edda-viewer -m my_module


2. Or run from the directory containing your module:

   cd /path/to/your/project
   edda-viewer -m my_module


Workflows Not Appearing¶

Problem: Viewer shows no workflows or diagrams

Solution:

1. Import the module containing your workflows:

   edda-viewer -m demo_app


2. Verify workflows are decorated with @workflow

3. Check that the database contains workflow instances

Once workflows appear, you'll see them with color-coded status badges:

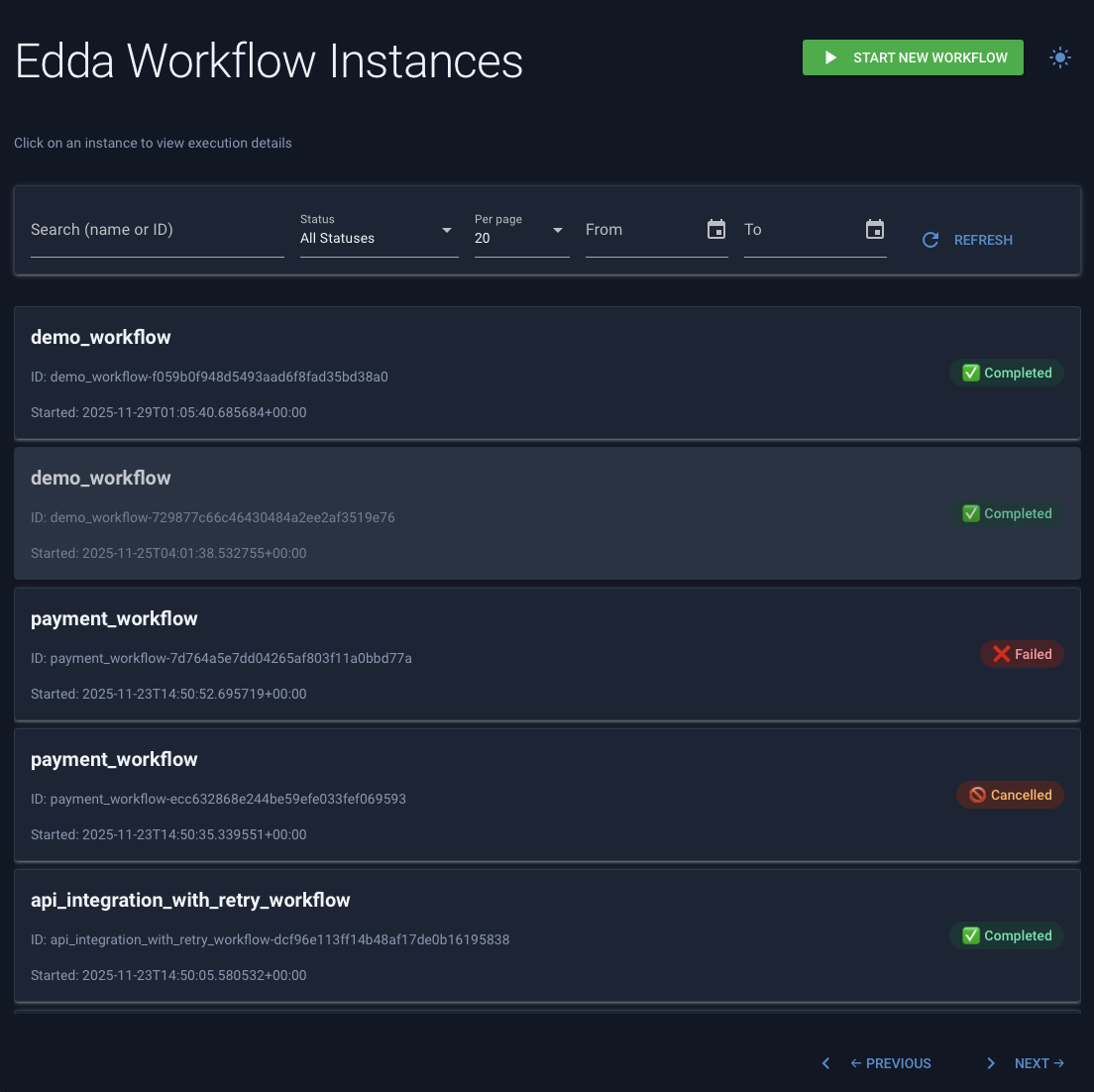

Workflow instances displayed with status badges (Completed ✅, Running ⏳, Failed ❌, Waiting ⏸️, Cancelled 🚫, etc.)

Next Steps¶

• Visualization Guide: Learn about workflow diagrams
• Examples: See Viewer in action
• Core Concepts: Understanding workflows and activities
