Workflow Visualization¶

The Edda Viewer UI provides workflow visualization and monitoring.

Diagram Elements¶

Nodes¶

Nodes in Diagram:

• Start node: Rounded rectangle with workflow name
• Activity nodes: Rectangles with status-specific emoji icons (✅, ⏳, ❌, ⏸️, ⏱️, 🚫, 🔄)
• End node: Rounded rectangle labeled "Complete"

Status Colors:

• ✅ Green - Completed successfully
• ⏳ Yellow - Currently executing
• ❌ Red - Failed
• ⏸️ Blue - Waiting for event
• ⏱️ Cyan - Waiting for timer
• 🚫 Orange - Cancelled
• 🔄 Purple - Compensating

Edges¶

Arrows in Diagram:

• Solid arrows: Normal control flow between activities (green for executed paths)
• Labeled arrows: Conditional branches (e.g., "sufficient", "insufficient")
• Dashed arrows: Compensation flow (reverse order, orange)

Conditional Branching Example¶

Workflows with conditional logic (if/else, match/case) are visualized with labeled branches:

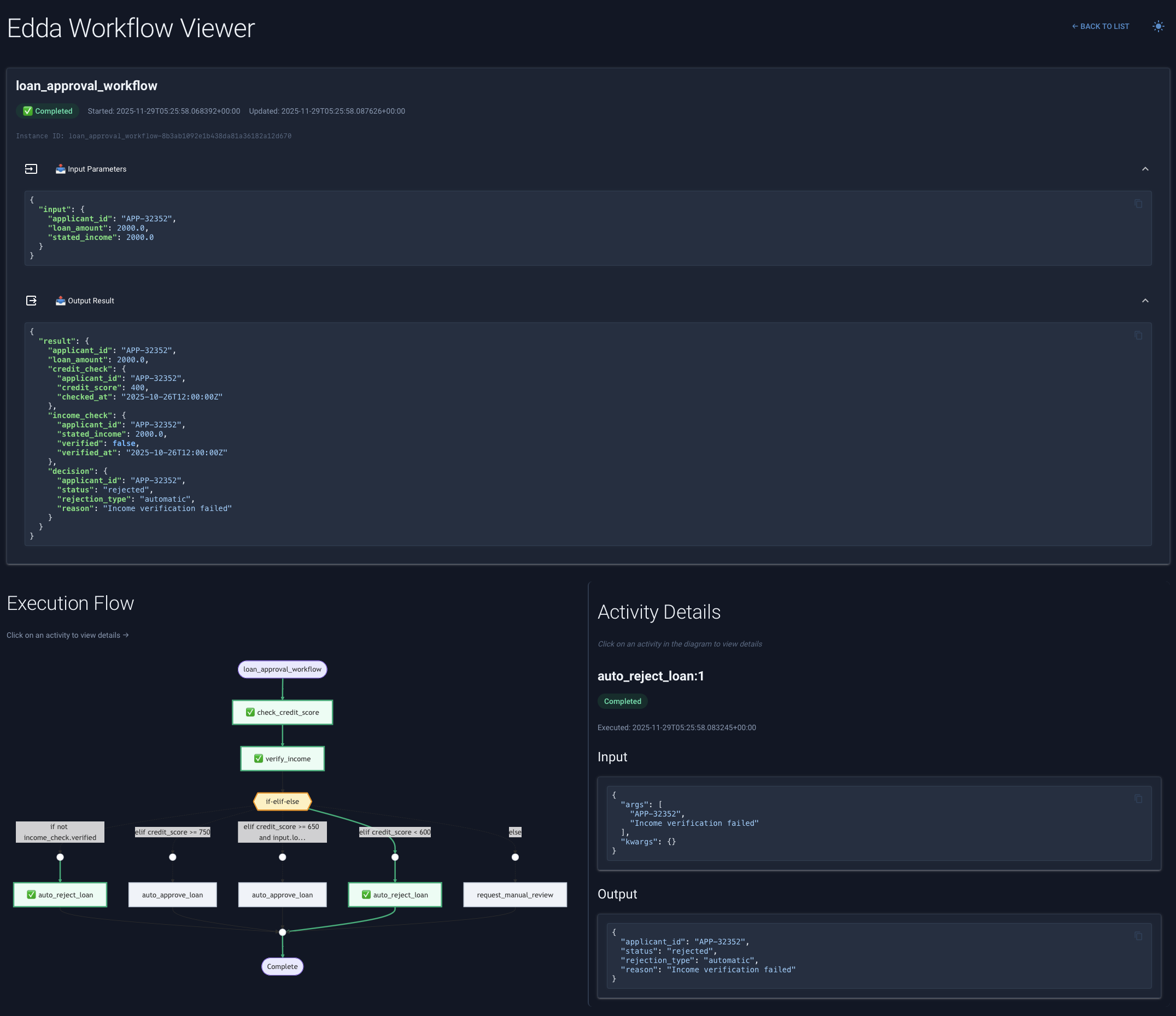

Example: loan_approval_workflow detail page. Note the Execution Flow diagram (bottom left) showing conditional branches with "sufficient" vs "insufficient" paths based on credit score.

The diagram clearly shows:

• Decision points (diamond shapes in some diagrams)
• Branch labels indicating conditions
• Different execution paths based on runtime data

Match/Case Pattern:

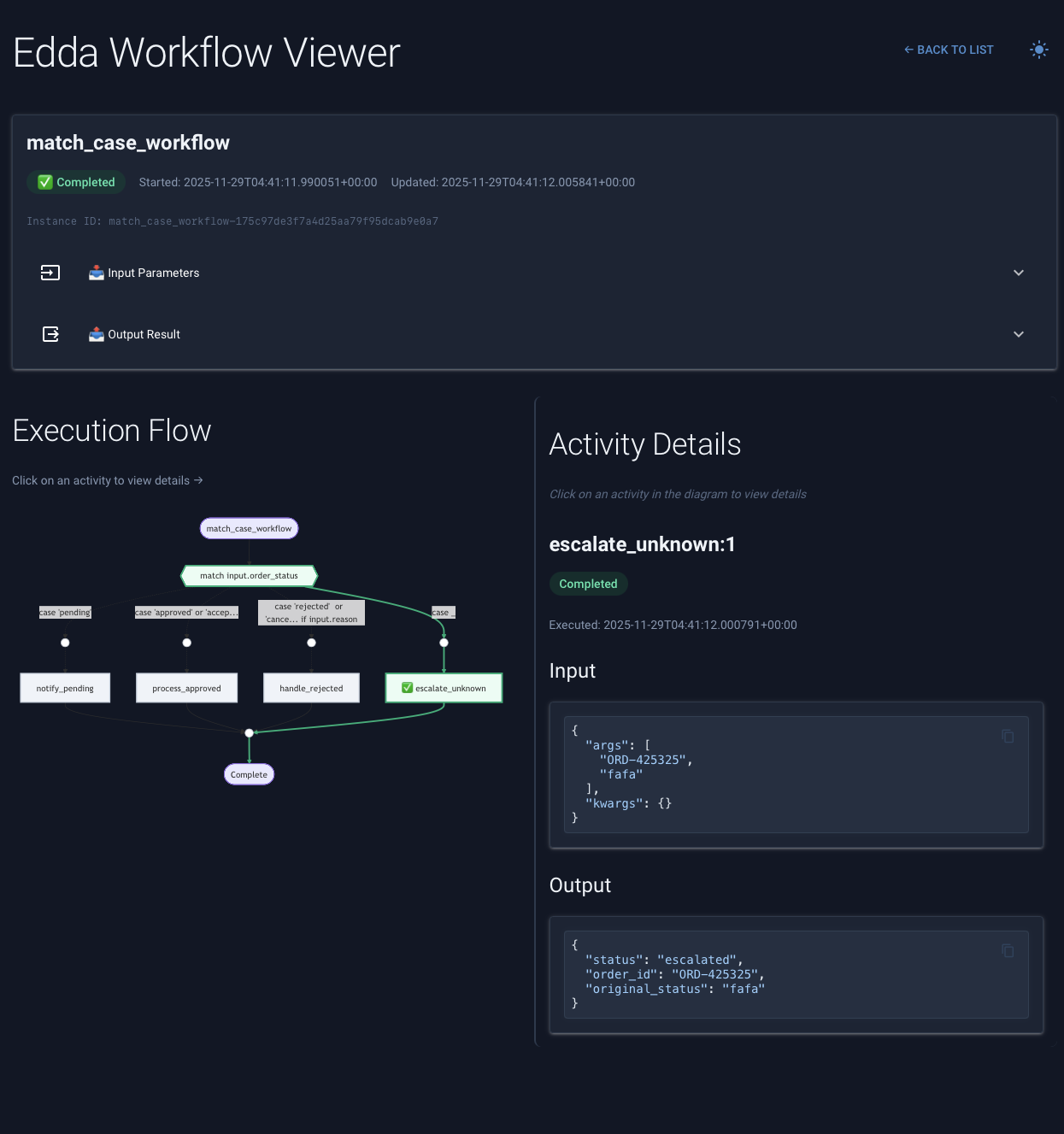

Example: match_case_workflow showing multiple case branches with different handlers

Viewing Workflows¶

Workflow List¶

The main page shows all workflow instances:

Status Badges¶

• ✅ Completed: Workflow finished successfully (green)
• ⏳ Running: Workflow currently executing (yellow)
• ❌ Failed: Workflow failed (red)
• ⏸️ Waiting (Event): Waiting for external event (blue)
• ⏱️ Waiting (Timer): Waiting for timer (cyan)
• 🚫 Cancelled: Manually cancelled (orange)
• 🔄 Compensating: Executing compensations (purple)

Workflow List View¶

The main page displays workflow instances as interactive cards with search and filter capabilities:

Workflow list with search filter bar, status filter, date range picker, and pagination controls

Workflow Detail Page¶

Click on a workflow instance to see the detail page:

Workflow detail page showing the Overview Panel (top), Execution Flow diagram (bottom left), and Activity Details panel (bottom right).

1. Overview Panel (top):

   • Instance ID, status, timestamps
   • Input parameters (JSON)
   • Output result (if completed)

2. Execution Flow (bottom left):

   • Visual graph of workflow structure
   • Color-coded execution status
   • Compensation flow (if applicable)

3. Activity Details (bottom right):

   • Step-by-step execution log
   • Activity results
   • Event data (for wait_event)
   • Error messages (if failed)

4. Actions:

   • Cancel: Stop running workflow

Starting Workflows from Viewer¶

The Viewer UI can start workflows with automatic form generation:

Automatic Form Generation¶

For Pydantic-based workflows, the Viewer generates input forms automatically.

Example: Workflow selection dropdown showing all registered workflows

The form generator supports various field types based on Pydantic model definitions:

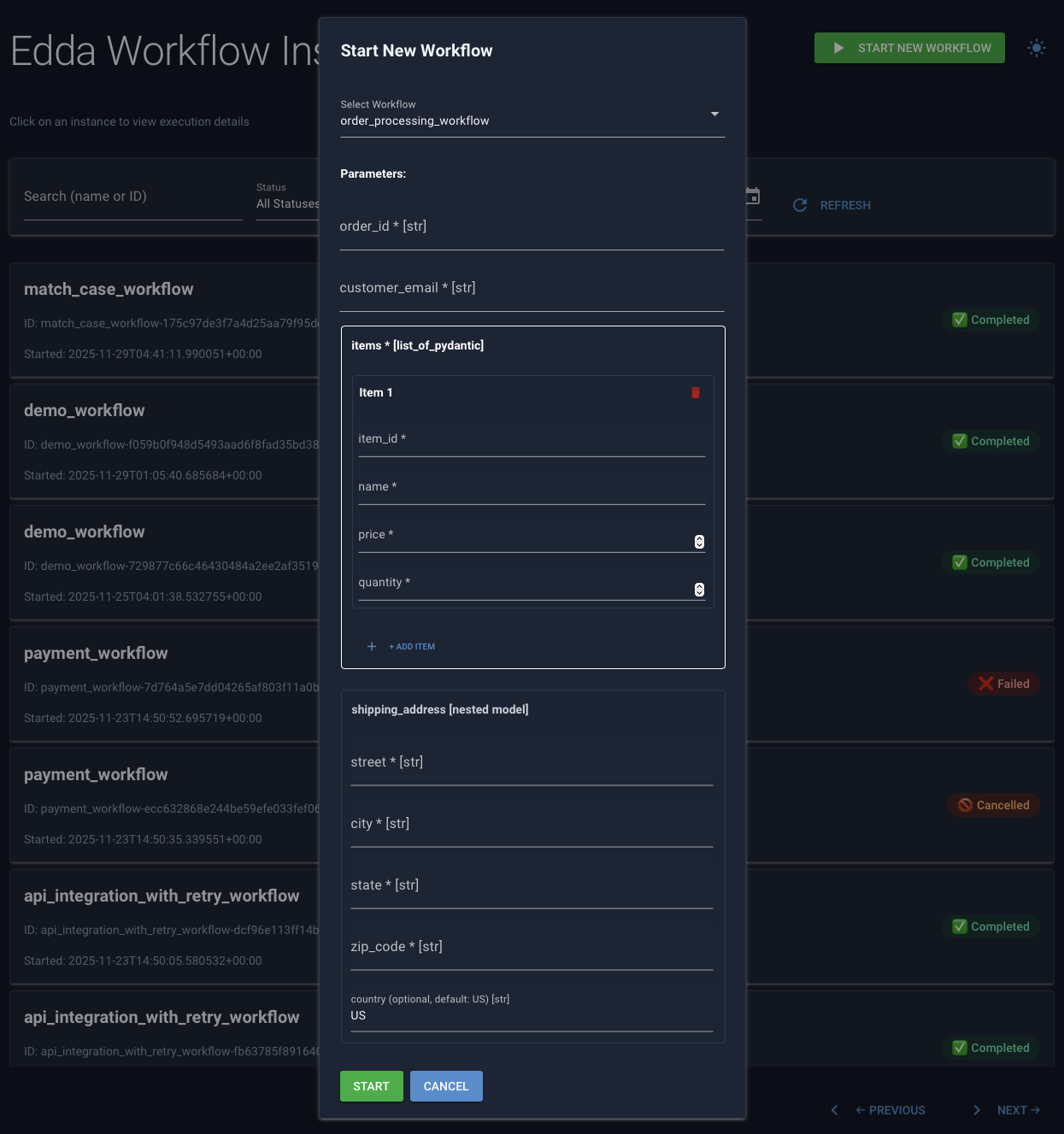

Auto-generated form with nested Pydantic models (items list, shipping_address) showing text inputs, number inputs, and nested model containers

Starting Workflow¶

1. Click "Start New Workflow" button
2. Select workflow from dropdown
3. Fill in parameters (auto-generated form)
4. Click "Start"
5. Workflow begins, redirects to detail page

Viewing Real-time Updates¶

The Viewer UI displays the latest workflow state. To see updates:

• ↻ Refresh the browser page
• ↻ Navigate between pages
• ↻ Click workflow cards to see current status

Note: The Viewer does not currently implement automatic polling. Manual refresh is required to see the latest changes.

Cancelling Workflows¶

Click the "Cancel" button on a running workflow:

1. Workflow status → cancelled
2. Compensation functions execute (if applicable)
3. Worker process released
4. Workflow cannot be resumed

Compensation Visualization¶

When a workflow is cancelled or fails, and compensations run, the diagram shows:

• 🔄 Purple nodes: Compensation activities
• 🚫 Orange nodes: Cancelled activities
• Dashed arrows: Compensation flow (reverse order)

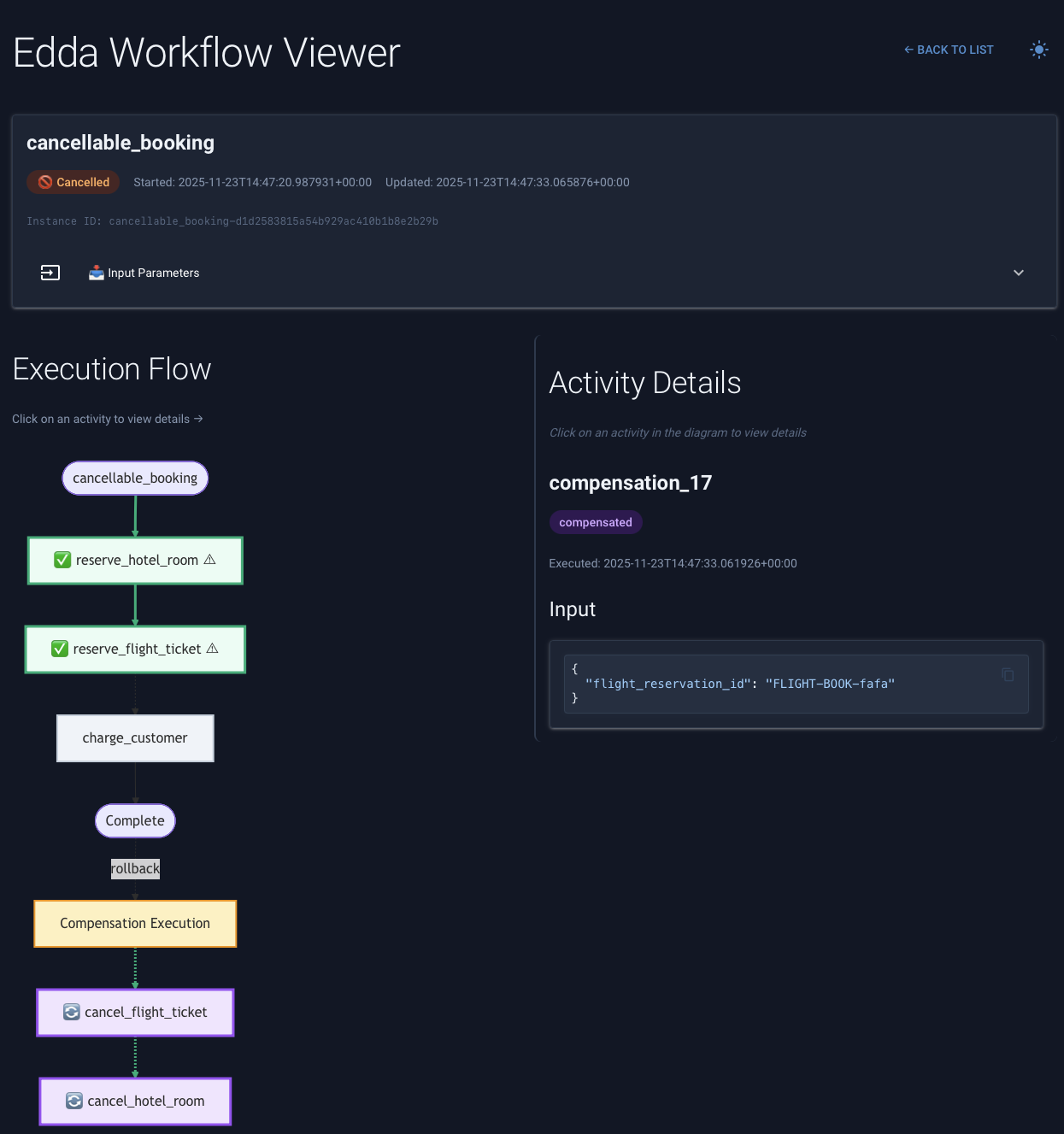

Saga compensation flow showing rollback activities (cancel_flight_ticket, cancel_hotel_room)

Event Waiting Visualization¶

Workflows can wait for external events using wait_event(). The Viewer displays waiting state:

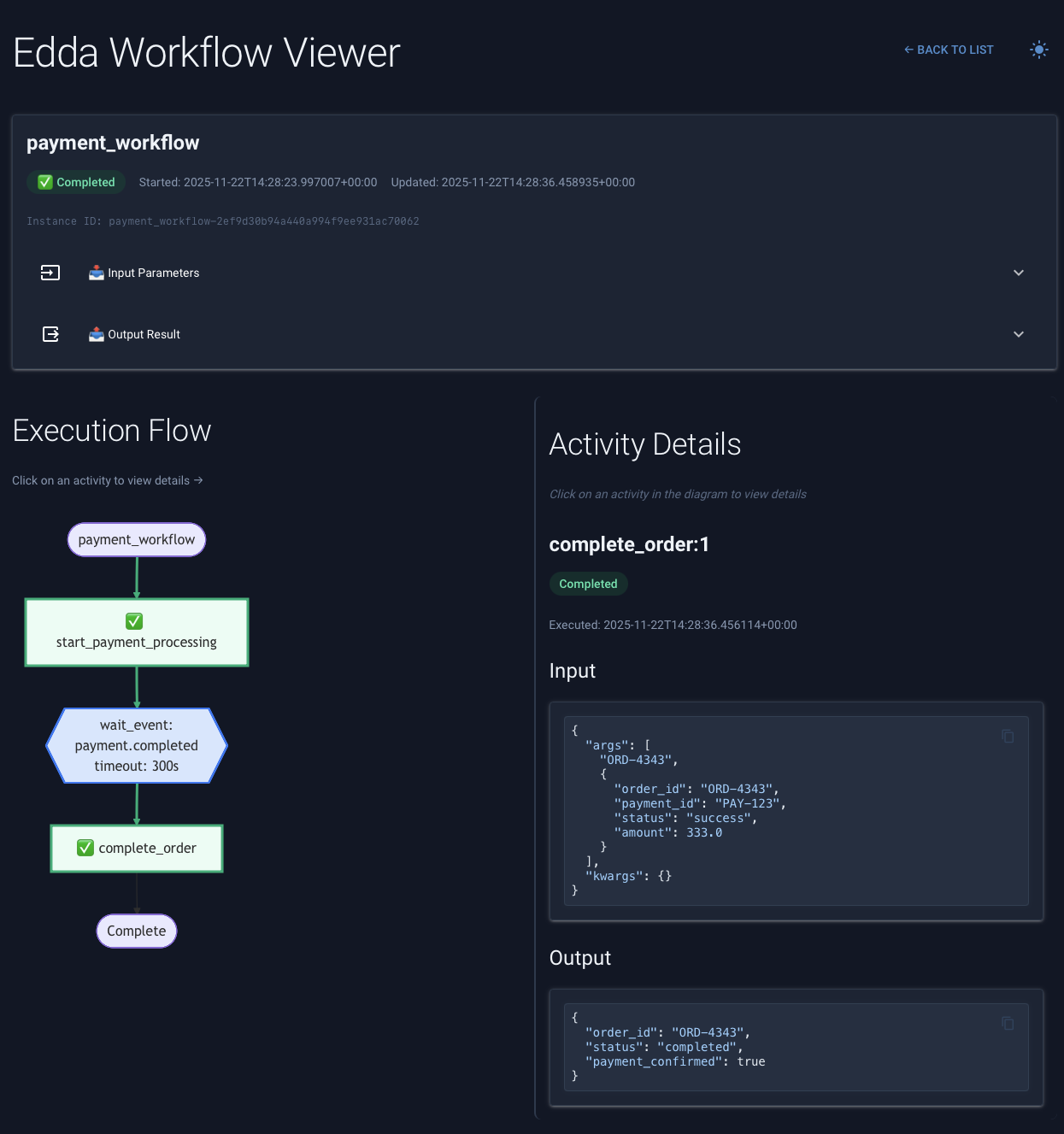

Workflow with wait_event showing event type, timeout, and activity details panel

The diagram shows: - Hexagon node: Event wait point - Event type being waited for - Timeout duration (if specified) - ⏸️ Waiting (Event) status badge

CLI Integration¶

Edda workflows can be triggered via CloudEvents using standard HTTP clients like curl:

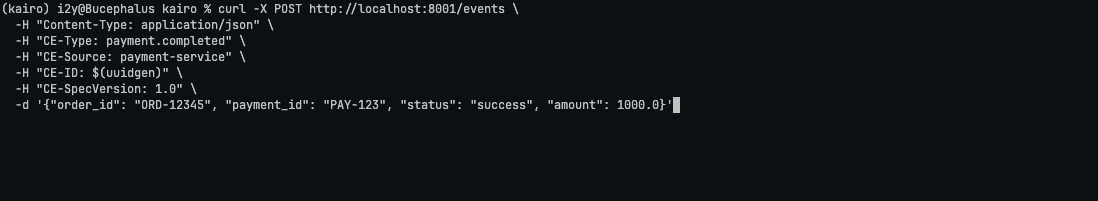

Example: Triggering payment_workflow via curl with CloudEvents headers

CloudEvents HTTP Binding:

# Start payment_workflow via CloudEvents
curl -X POST http://localhost:8001/ \
  -H "Content-Type: application/json" \
  -H "CE-Type: payment_workflow" \
  -H "CE-Source: example" \
  -H "CE-ID: $(uuidgen)" \
  -H "CE-SpecVersion: 1.0" \
  -d '{"order_id": "ORD-12345", "amount": 1000.0}'

CloudEvents Headers:

Workflow Requirements:

For CloudEvents auto-start, the workflow must have event_handler=True:

@workflow(event_handler=True)  # ← Required for CloudEvents auto-start
async def payment_workflow(ctx: WorkflowContext, input: PaymentWorkflowInput):
    # ...

Sending Events to Waiting Workflows:

# Send payment.completed event to resume waiting workflow
curl -X POST http://localhost:8001/ \
  -H "Content-Type: application/json" \
  -H "CE-Type: payment.completed" \
  -H "CE-Source: payment-service" \
  -H "CE-ID: $(uuidgen)" \
  -H "CE-SpecVersion: 1.0" \
  -d '{"order_id": "ORD-12345", "payment_id": "PAY-123", "status": "success", "amount": 1000.0}'

This flexibility allows:

• ✅ Automated testing with shell scripts
• ✅ Integration with CI/CD pipelines
• ✅ External system integration
• ✅ Manual workflow triggering for debugging

Next Steps¶

• Setup Guide: Install and configure Viewer UI
• Examples: See Viewer in action with examples
