Rakugan

The whole picture

One source, two roads to run it.

Both roads end at one engine. The interpreted run opens it through an XS door as a shared library; the compiled run has pixie link it in. The engine never holds a Perl value, which is what lets an interpreter and a binary with no perl in it drive exactly the same code.

Write it, run it, ship it

The smallest complete app:

use Rakugan;

class Counter {
    use Rakugan;
    field $count = 0;

    method view {
        return column(
            text("count: $count", size => 34),
            button("+1", on_click => sub { $count += 1 }),
            spacing => 12,
            padding => 16,
        );
    }
}

run(Counter->new, title => "counter");

An app is a class, written with the class feature of perl 5.40 and newer. Its state is its fields, view answers one element, and a handler is an anonymous sub that closes over them. There is nothing to inherit from, nothing to register, and nothing to mark as observable.

Nothing in that file says a type, and the compiled run is typed all the same: a field's type is read from its initializer, a handler's parameter from the element it is written on. A container that starts empty says what it will hold, field @items = empty(Str);, and a method with parameters says what they are, method add :Sig(Int) ($by). That is the whole of the annotation.

$ ./bin/rakugan run app.pl

That opens a window and watches the file. Save an edit and the window picks it up: the file is read again, and the object the window is holding answers with the new view while keeping every value it had.

Ship it:

$ ./bin/rakugan build demo/todo.pl --release --app
built: ~/.cache/pixie/target/release/main (11.9 MB)
bundle: demo/dist/todo.app (11.9 MB)

The binary carries the engine and the translated app and links nothing but the system's own libraries. The person receiving it installs neither perl nor the toolchain.

What it looks like

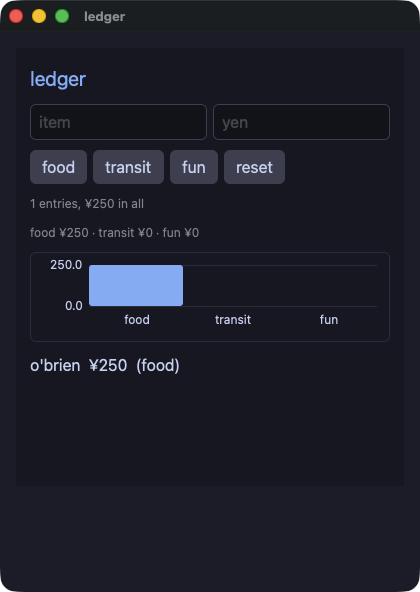

demo/ledger.pl — money kept in a database, every value bound rather than spliced, with a chart over the totals. Ordinary Perl; ships as one native binary.

"But it worked on my machine"

Hand it a sequence of interactions and it replays them against the perl run and the compiled binary, then compares the resulting screens. Rakugan calls it the gate:

$ ./bin/rakugan gate app.pl --script "click:+1,dump"
GATE OK — 3 dump lines identical in both runs

The interpreted run is perl, so a green gate means the shipped binary agrees with the real interpreter on everything the script touched. The places where the two are not the same program are named, with reasons, on The two runs.

Where the name is Perl's, perl is the specification

length, substr, uc, sort, grep, map, sprintf, List::Util, POSIX, and regular expressions are the language's own, not a library of ours standing in front of them. The compiled run carries no perl, so each of them is written once in Rust and linked — and then measured against a table of a thousand rows that perl itself printed, so agreement with perl is a test rather than a hope.

    my @big  = grep { $_ > 5 } @scores;
    my $line = sprintf("mean %.1f max %d", sum(@scores) / scalar @scores, max(@scores));

Files, a database, the network and the clipboard come from the framework instead, and there one implementation answers both runs:

    sqlite_exec($db, "INSERT INTO expenses VALUES (?, ?, ?)", [$name, $yen, $cat]);
    my @rows = sqlite_query_rows($db, "SELECT name, amount FROM expenses ORDER BY rowid");

Two games, ported

Two of Pyxel's own examples (Takashi Kitao, MIT) are in the bundled demos, ported almost line for line: the same pixel canvas, the same thirty frames a second, the same keys read while they are held. A script of keystrokes and frames replays both runs, so the gate compares every frame of the game.

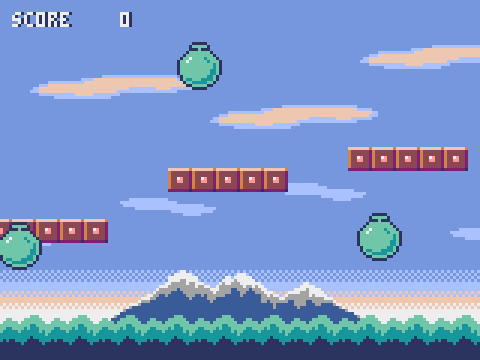

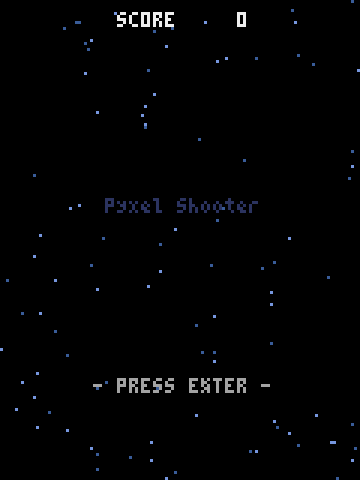

demo/shooter.pl and demo/jump.pl — inside a canvas a color is a number, the index of a color in the palette, which is what lets drawing code written for a pixel machine port with its numbers unchanged.

When an agent is writing it

An agent writes a file and reads what comes back, so what comes back decides how the session goes. Two of the commands answer in about a tenth of a second, with no compiler and no window: a refusal that names what to write instead, and the screen as text. The gate is the proof at the end.

Building with an agent walks the whole loop.

What else is in it

Where next

The name is 落雁 — rakugan, a pressed dry confection. Like Yokan, Wakakusa and Gomamochi, the three languages it shares an engine with, it is named after a Japanese sweet.
