Wakakusa

The whole picture

One source, two roads to run it.

Both roads drive one engine, behind a C ABI: the interpreted run opens it as a shared library, the compiled run links the static one. The engine never holds a Ruby object, which is what lets an interpreter and a compiled binary drive exactly the same code.

What it looks like

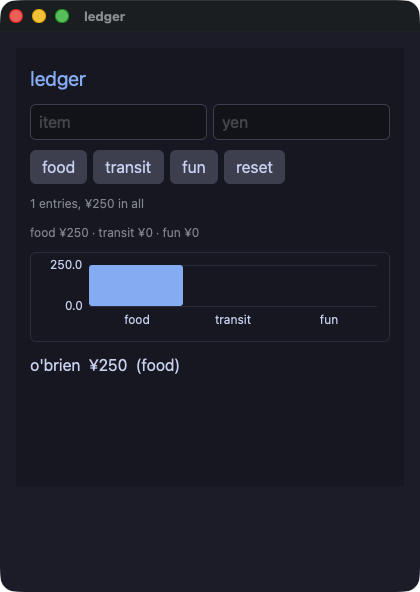

demo/ledger.rb — money kept in a database, every value bound rather than spliced, with a chart over the totals. Ordinary Ruby; ships as one native binary.

Write it, run it, ship it

The smallest complete app:

require "wakakusa"

class Counter
  def initialize
    @count = 0
  end

  def view
    column(spacing: 12.0, padding: 16.0) {
      text "count: #{@count}", size: 34.0
      button("+1") { @count += 1 }
    }
  end
end

run(Counter.new, title: "counter")

An app is an object. Its state is its instance variables, view answers one element, and a handler is a block that closes over it. There is nothing to inherit from, nothing to register, and nothing to mark as observable.

$ ./bin/wakakusa run app.rb

That opens a window and watches the file. Save an edit and the window picks it up: the file is read again, and the object the window is holding answers with the new view while keeping every value it had — initialize is not run again on it, which is the point.

Ship it:

$ ./bin/wakakusa build demo/todo.rb --release --app
built: demo/.gate/todo (12.3 MB)
bundle: demo/dist/todo.app (12.5 MB)
  not gate-checked — `gate` with a script proves the two runs agree

The binary carries the engine and the compiled Ruby and links nothing but the system's own libraries. The person receiving it installs neither Ruby nor the compiler.

"But it worked on my machine"

Hand it a sequence of interactions and it replays them against the CRuby run and the compiled binary, then compares the resulting screens. Wakakusa calls it the gate:

$ ./bin/wakakusa gate app.rb --script "click:+1,dump"
GATE OK — 3 dump lines identical in both runs

The interpreted run is CRuby, so a green gate means the shipped binary agrees with the real interpreter on everything the script touched. The handful of places where the two are not the same program are named, with reasons, on The two runs.

Ruby's own library, in both runs

File, Dir, JSON, CSV, Time, Math, Net::HTTP, sockets, threads, everything Enumerable answers — you write Ruby's library, not a library of ours standing in front of it. Underneath, one run is CRuby's implementation and the other the compiler's, and the gate is what holds them together.

How much of Ruby you may write — CRuby's all of it, spinel's compilable part, and Wakakusa's five further subtractions — is set out in Three Rubys, nested.

A database is the one exception, because it is no use unless both runs read the one file the same way:

sqlite_exec(DB, "INSERT INTO expenses VALUES (?, ?, ?)", [name, yen, cat])
rows = sqlite_rows(DB, "SELECT name, amount FROM expenses ORDER BY rowid")

Two games, ported

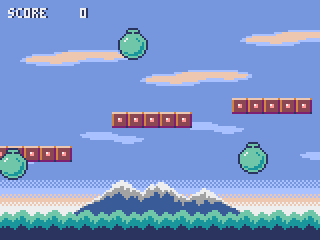

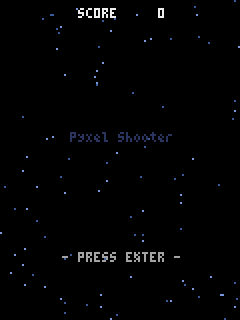

Two of Pyxel's own examples (Takashi Kitao, MIT) are in the bundled demos, ported almost line for line: the same pixel canvas, the same thirty frames a second, the same keys read while they are held. A script of keystrokes and frames replays both runs, so the gate compares every frame of the game.

demo/shooter.rb and demo/jump.rb — inside a canvas a color is a number, the index of a color in the palette, which is what lets drawing code written for a pixel machine port with its numbers unchanged.

When an agent is writing it

An agent writes a file and reads what comes back, so what comes back decides how the session goes. Two of the commands answer in well under a second, with no compiler and no window: a refusal that names what to write instead, and the screen as text. The gate is the proof at the end.

Building with an agent walks the whole loop.

What else is in it

Where next

The name is 若草 — wakakusa, one of the three famous confections of Matsue. Like Yokan, it is named after a Japanese sweet.
